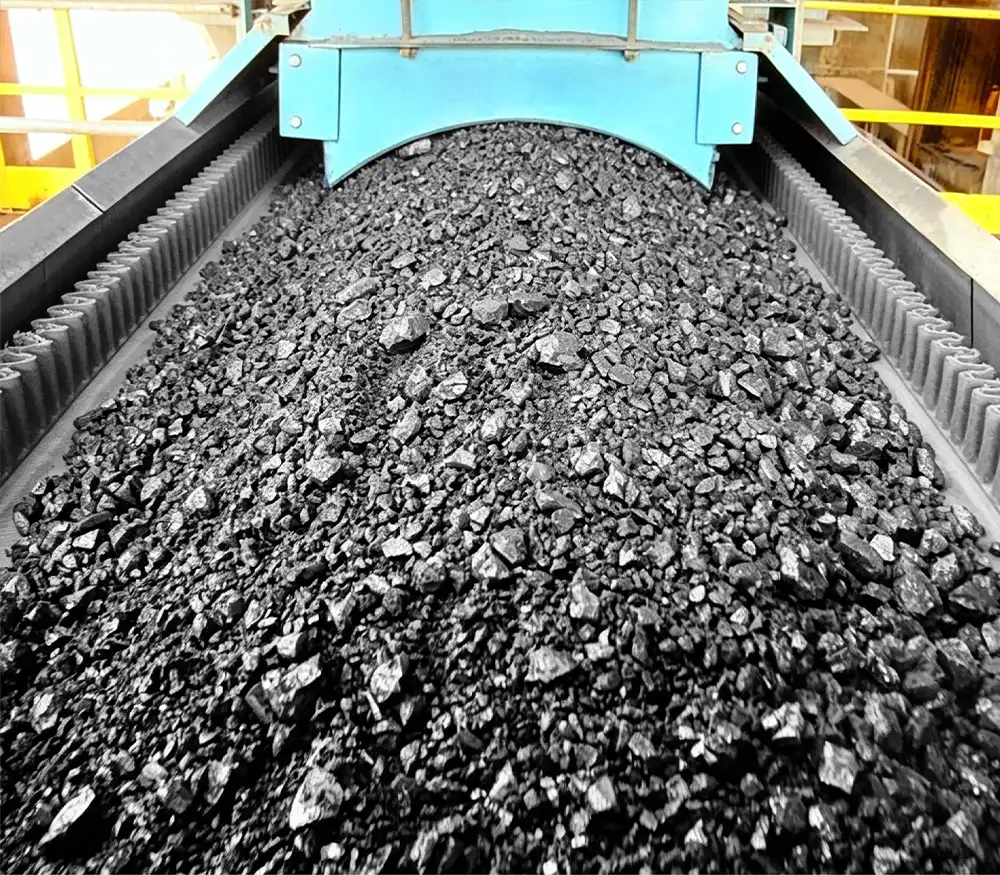

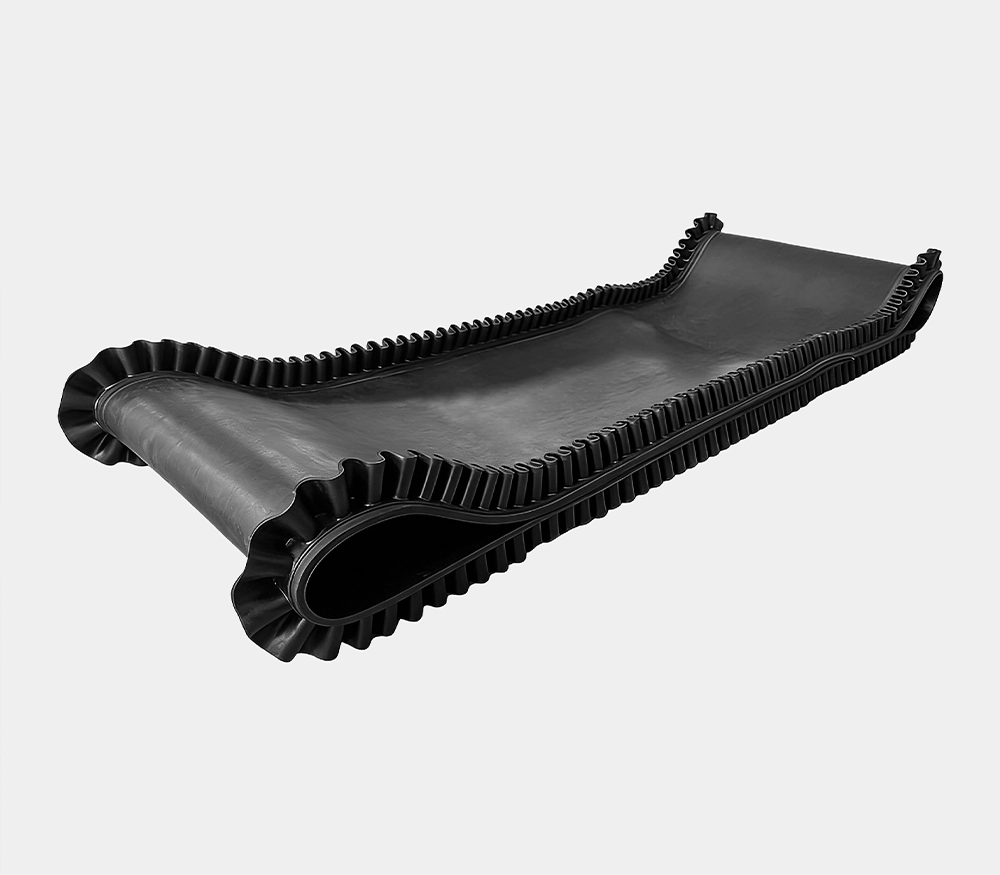

Truly Endless Sidewall Conveyor Belt

According to industry statistics, up to 80% of sidewall conveyor belt failures occur due to rigidity loss–induced sagging during operation. QBF rubberaddresses this root cause with an innovative “free zone ” base belt design, significantly extending the service life of sidewall conveyor belts. What Is Belt Sagging and Why Does It Shorten Belt Life? Under heavy load, especially on the return run, the base belt often sags due to insufficient transverse rigidity. This sagging triggers a chain of serious issues: Stress concentration – Sagging causes abnormal flexing at the sidewall root as it passes over the drum, concentrating stress in a localized area. Fatigue cracking – Repeated flexing leads to fatigue cracks at the sidewall root, which can develop into through-wall damage. Baffle detachment – Vibration and deformation from sagging transfer to the baffle connection, accelerating adhesive aging and causing baffle loosening or separation. Once sidewall tearing or baffle detachment occurs, the entire sidewall conveyor belt often fails prematurely. Therefore, solving the sagging problem is the key to extending belt service life. Root Cause of Belt Sagging The core cause of sagging lies in structural deficiencies of traditional base belt designs: Insufficient transverse rigidity – Traditional base belts cannot maintain a flat profile under heavy loads or long-span conditions. Unbuffered stress transfer – The sidewall-to-base belt connection lacks a flexible transition, so abnormal sagging stress directly impacts the sidewall root. Accelerated fatigue accumulation – Repeated flexing at stress concentration points causes cracks to grow from micro to macro levels. Understanding these causes makes it clear: simply increasing sidewall thickness or changing the rubber compound is a temporary fix. The solution must start with the base belt structure. Solution: QBF rubber Free Zone Base Belt Design QBF rubber introduces a “free zone ” base belt design to directly target the root cause of sagging. How the free zone  Works Blocks stress transfer – The free zone  acts as a stress buffer, absorbing and isolating abnormal sagging stress before it reaches the sidewall root. Dissipates flexing energy – The flexible edge allows the base belt to adaptively deform as it passes over the drum, spreading concentrated flexing over a larger area. Protects sidewall and baffles – By mitigating the extra load caused by sagging, the risk of fatigue tearing at the sidewall root is greatly reduced, and the baffle adhesive layer no longer suffers excessive vibration stress. Key Advantages of the free zone  Design Advantage Result sidewall tear resistance Eliminates stress concentration points; fatigue life extended by 2–3 times Baffle detachment risk Smoother operation; significantly slower adhesive aging Overall belt service life Comprehensive service life increased by 30% or more   QBF rubber’s Free Zone Base Belt design achieves a leap from “reacting to sagging consequences” to “eliminating the root cause of sagging.” Summary: Eliminate Sagging at the Source for Longer Sidewall Belt Life The sagging problem in heavy-duty sidewall conveyor belts originates in the base belt structure. QBF rubber’s free zone  design solves this industry pain point by blocking stress transfer, dissipating flexing energy, and protecting both sidewall and baffles. If you are experiencing frequent sagging, sidewall tearing, or baffle detachment with your sidewall conveyor belt, contact QBF rubber for professional technical support and customized solutions.

The customized S400 B1800 TCS360 anti-stick Sidewall Belt — developed by QBF Rubber for the Shenzhen Tunnel Project — is now under installation! With a total length of 190m, this high-performance non-stick belt is set to play a crucial role in ensuring smooth and efficient tunnel construction. More Than Just a Product – Full-Service Support! Our after-sales team is fully committed to providing: ✔ Tailored installation plans ✔ Professional on-site guidance ✔ Hot vulcanization splicing services ✔ Comprehensive commissioning & operation support Every step is meticulously handled to ensure flawless performance of the sidewall belt!   Technology + Service Facilitate Tunnel Construction “This cooperation reflects QBF rubber’s R&D strength and service capability in the field of special conveyor belts,” the project manager said, “The application of the anti-stick sidewall conveyor belt will significantly improve the conveying efficiency, reduce the downtime for maintenance, and provide key support for the project to be pushed forward on schedule.” In the future, QBF rubber will continue to focus on technological innovation and customer needs to provide more efficient and durable conveyor system solutions for global infrastructural projects.

As mining operations go deeper, vertical lifting efficiency and safety have become major constraints on mine output. Designed for deep shafts, inclined shafts and complex terrain, our vertical lifting system works across 0 500 m vertical heights and supports steep angle, long distance material transport. Thanks to modular design, high throughput and full lifecycle services, it has gained wide attention in the mining material handling industry.   Three Core Solutions for Varied Lifting Applications Our portfolio includes three main product lines to cover diverse vertical transport demands. Steep Angle Sidewall Conveyor Solution Engineered as an alternative to conventional mine cages, this solution handles vertical heights from 0 m to 500 m. In inclined shaft conditions, throughput can exceed 10 000 tons per hour. It overcomes the low efficiency, intermittent nature of cage hoisting and enables fast, continuous material transfer from underground to surface. Pocket Type Vertical Lifting System Optimized for high height, high volume tasks, this system is ideal for muck removal shaft main lines and blind shaft intermediate transfer. Proven in tunneling projects, it runs stably above 250 m lift height with capacities over 800 m³/h. It fills performance gaps under tight space conditions and can reach lifting heights over 500 m. Long Distance Rope track Conveying System Boasting single spans beyond 2 000 m, this system serves mountain and river valley sites. It reduces transfer points, cuts energy consumption and lowers overall maintenance costs for difficult terrain material haulage. Full Chain “EPC+M+O” Service Model Beyond equipment supply, Bairui provides a complete EPC+M+O service package: E (Evaluation & Custom Design): Custom engineer conveyors and belts based on mine geology, production targets and existing site infrastructure. P (Core Equipment Manufacturing): In house production of sidewall belts, lifting pockets and drive units for reliable quality and on time delivery. C (Installation Guidance): On site technical support for installation and commissioning to ensure smooth startup. M (Operation Management): Partial or full operational outsourcing to help mines hit production targets quickly. O (Smart O&M): Condition monitoring and predictive maintenance platform for early fault warnings and optimized maintenance schedules. Key Benefits vs Traditional Lifting Equipment For shafts deeper than 500 m, traditional multi rope friction hoists suffer from short rope life, batch type loading and complex controls. The Steep Angle Sidewall Conveyor Solution fits compactly within limited shaft space. Its continuous output connects directly to processing plants or silos, eliminating intermediate stockpiles and re handling expenses. In tunnel construction, the Pocket Type Vertical Lifting System features small turning radii and steep climbing performance. It has replaced imported equipment on multiple inclined shaft tunnel projects, delivering local manufactured cost savings. It requires minimal maintenance space and tolerates heavy dust and poor water conditions.   Field Proven Project Experience Our solutions are operational across global metal mines, coal mines and large tunneling infrastructure. China’s first 255 m mine used vertical lifting system is now in service, boosting vertical conveying efficiency by over 10× with safe, energy saving and eco friendly operation. September Global Exhibition Roadshow This September, Bairuifu will attend four key mining expos across Central Asia, Africa and China to showcase our full vertical lifting portfolio and EPC+M+O service model. Industry professionals are welcome to visit our booths for technical exchanges.   Exhibition Schedule Mining World Central Asia 2026 Sep 16 18, 2026｜Atakent International Exhibition Centre, Almaty | Booth: 11 307   Electra Mining Africa 2026 Sep 7 11, 2026｜Johannesburg Expo Centre | Booth: P10   The 28th China Mining Conference and Exhibitlon Sep 10 12, 2026｜Meijiang Convention and Exhibition Center, Tianjin | Booth: N2 2607   The 20th Yulin International Coal and High-end Energy Chemical Industry Expo Sep 13 15, 2026｜Yulin Convention & Exhibition Center| Booth: H342 / H335
