▶ Product Structure

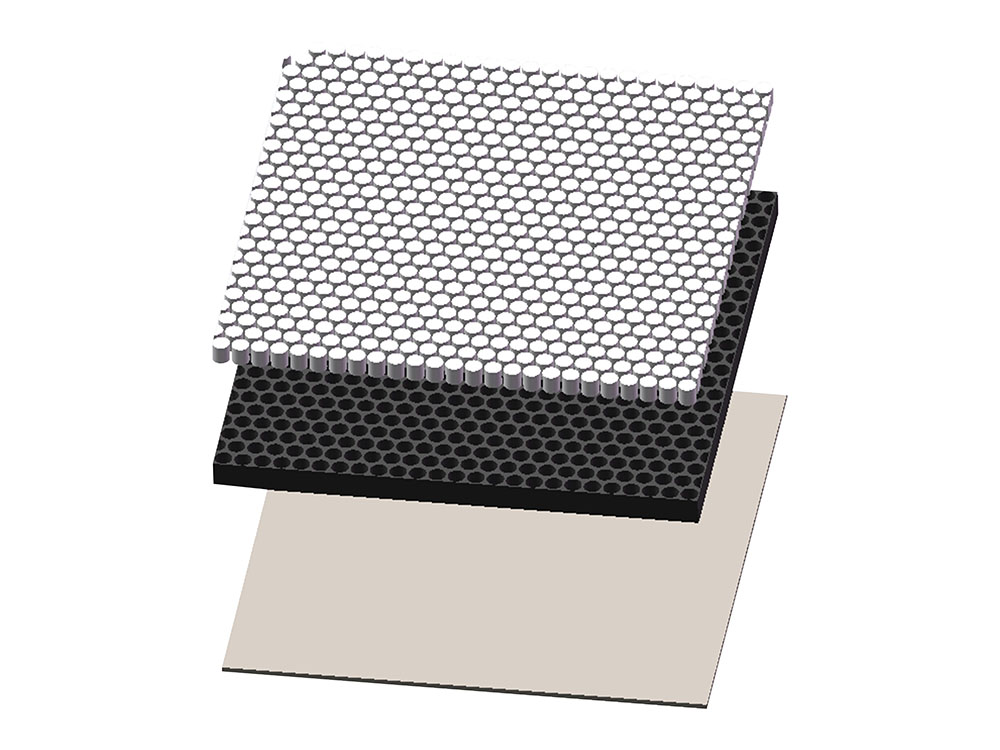

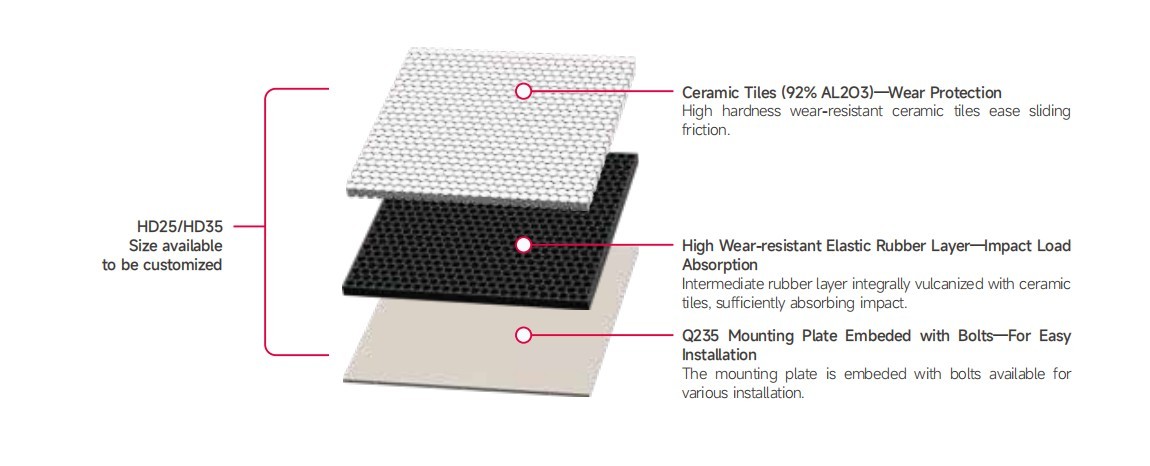

QBF rubber ceramic wear lining is the combination of ceramic, rubber and steel plate by hot vulcanization and designed to provide protection to your equipment.

▶ Product Benefits

• Alumina ceramic (Al2O3>90%) with hardness >HRA88 delivers wear resistance 270 timers higher than manganese steel

• Spherical surface design and quality buffering layer withstand impact caused by large sized materials

• Ceramic tiles feature high strength, excellent corrosion resistance and water-repellent property, effectively prevent material sticking

• Alumina ceramic has good chemical stability to resist to corrosion

• Available to be used in environment at 0~250℃

• Ceramic tiles, rubber and mounting plate are integrally molded to deliver high stability

• Accommodate to different equipment with easy installation

• Available to be installed by bolting or welding as requirement

• Service life is 5 times higher than manganese steel without frequent maintenance

• Shape, size and thickness can be customized to meet different requirement

▶ Product Specifications

▶ Applications

• Lining against extreme wear through impact and abrasion at high speeds

• Lining of material transfer stations with low impact angles

• For heavy to medium duty applications in mining,gravel,sand and stone breaking mills and other industrial sectors

• In applications like pipelines, vibratory feeders, cyclones, skips, bunkers, chutes loading points, slides, hoppers, silos, etc.

• Thermal Power Industry (Coal Drop Pipe Liners)

• Steel Industry (Furnace Hoppers, Rotary Mixers)

• Cement and Building Materials Industry (Chutes)

• Metallurgy Industry (Hoppers)

• Machinery Industry (Hoppers)

• Coal Industry (Transfer Station Chutes)

• Mining Industry (Primary Crushing, Secondary Crushing & Fine

• Crushing Transfer Chutes and Hoppers)

• Chemical Industry (Chutes)

• Coal Chemical Industry (Coal Drop Pipes)

• Ports and Terminals (Ship Unloader Hoppers)

• Commercial Concrete Industry (Concrete Mixer Liners)

▶ Installation Method

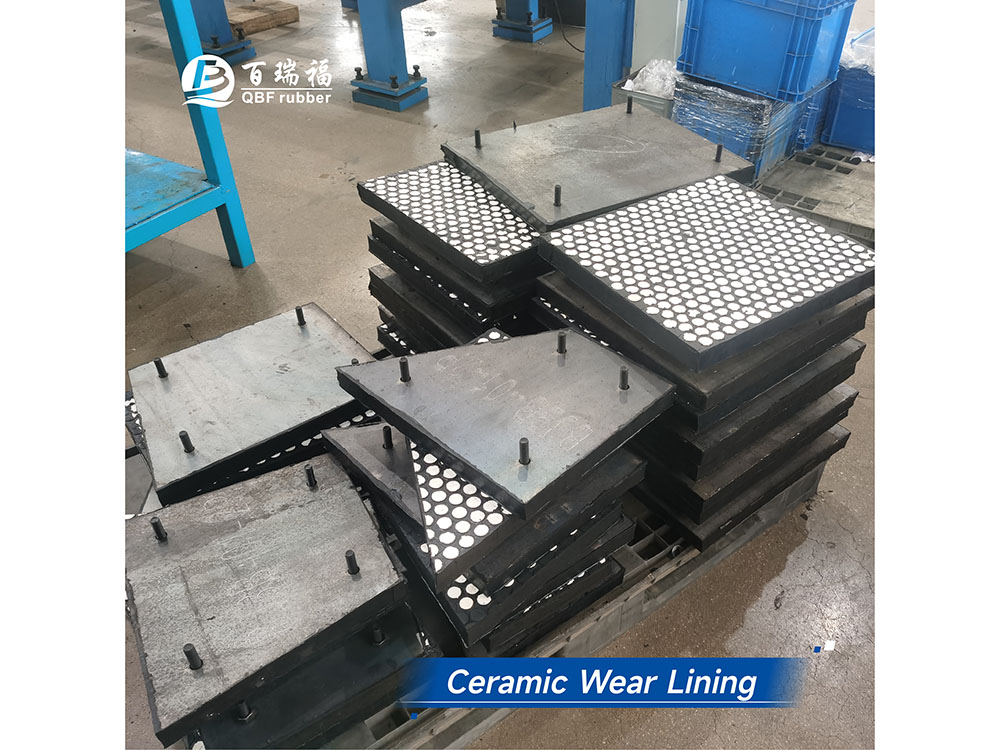

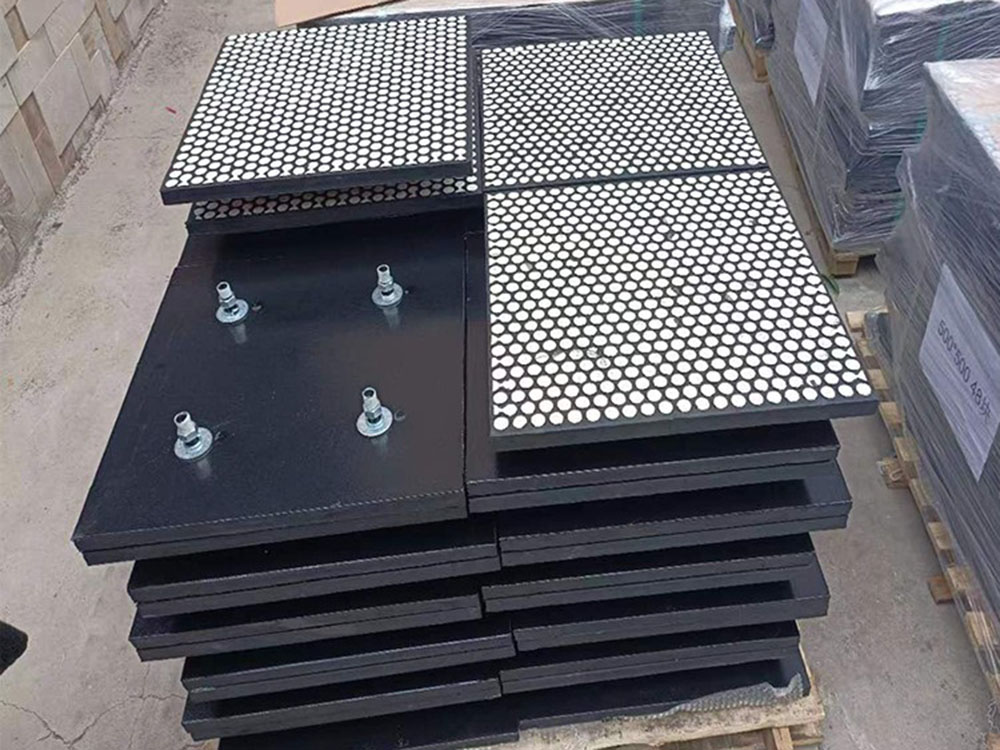

The three-in-one ceramic wear lining offers two installation methods by bolting or welding. During installation, mark lines and drill holes at the installation position (it can be installed according to the original hole positions without the need for additional holes). Use special welding equipment to weld the bolts onto the steel back plate, then install the lining plate and tighten the bolts. The installation process is flexible and convenient, requiring no additional tools or equipment. Stud welding is safe and reliable, so even if the lining plate is damaged, it is not easy to fall off.

The three-in-one ceramic wear lining adopts modular production and assembly, making disassembly and replacement simple. During maintenance, only the parts with heavy wear or impacted by large materials need to be replaced.
