Ceramic Pulley Lagging

Product Overview

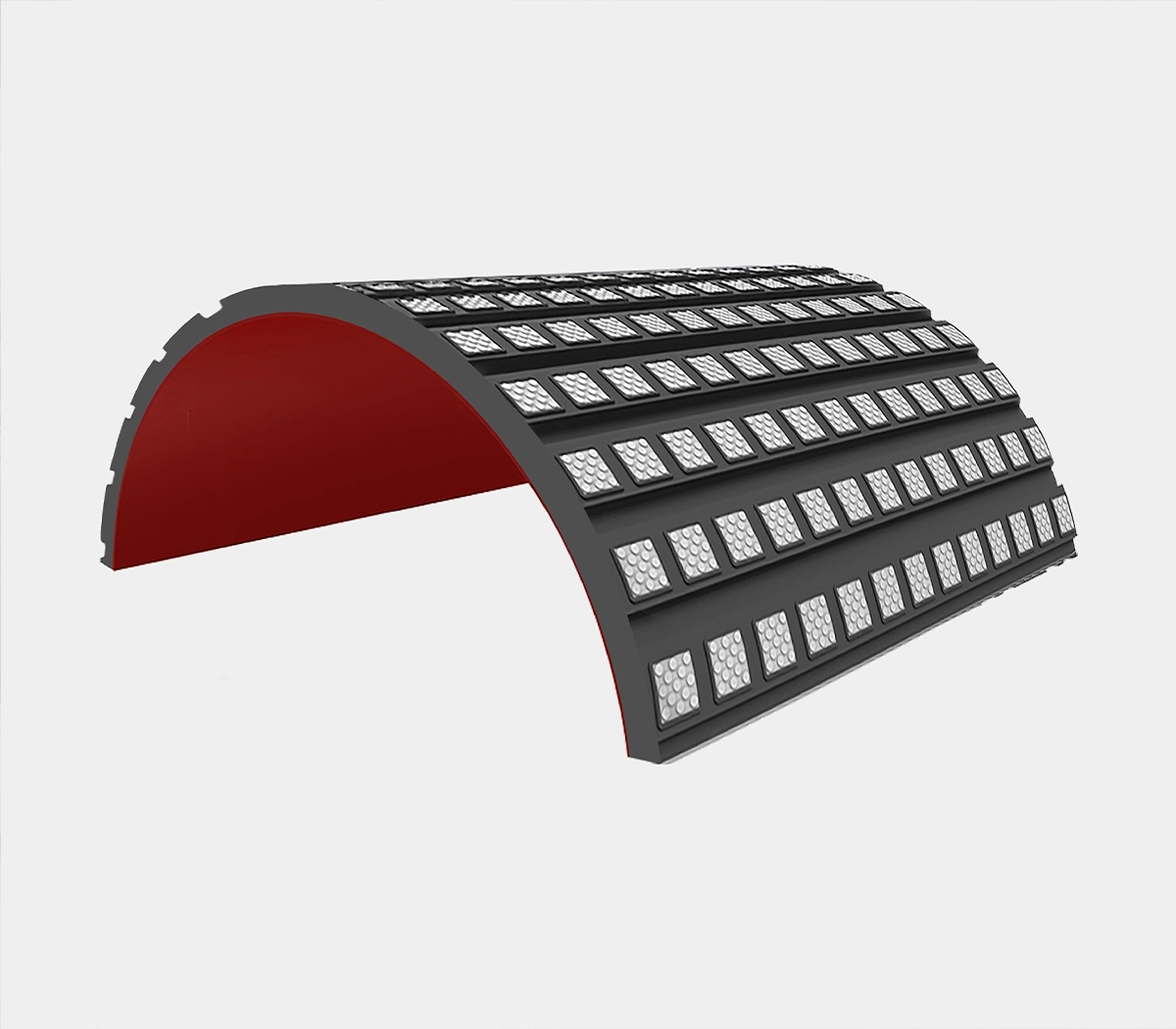

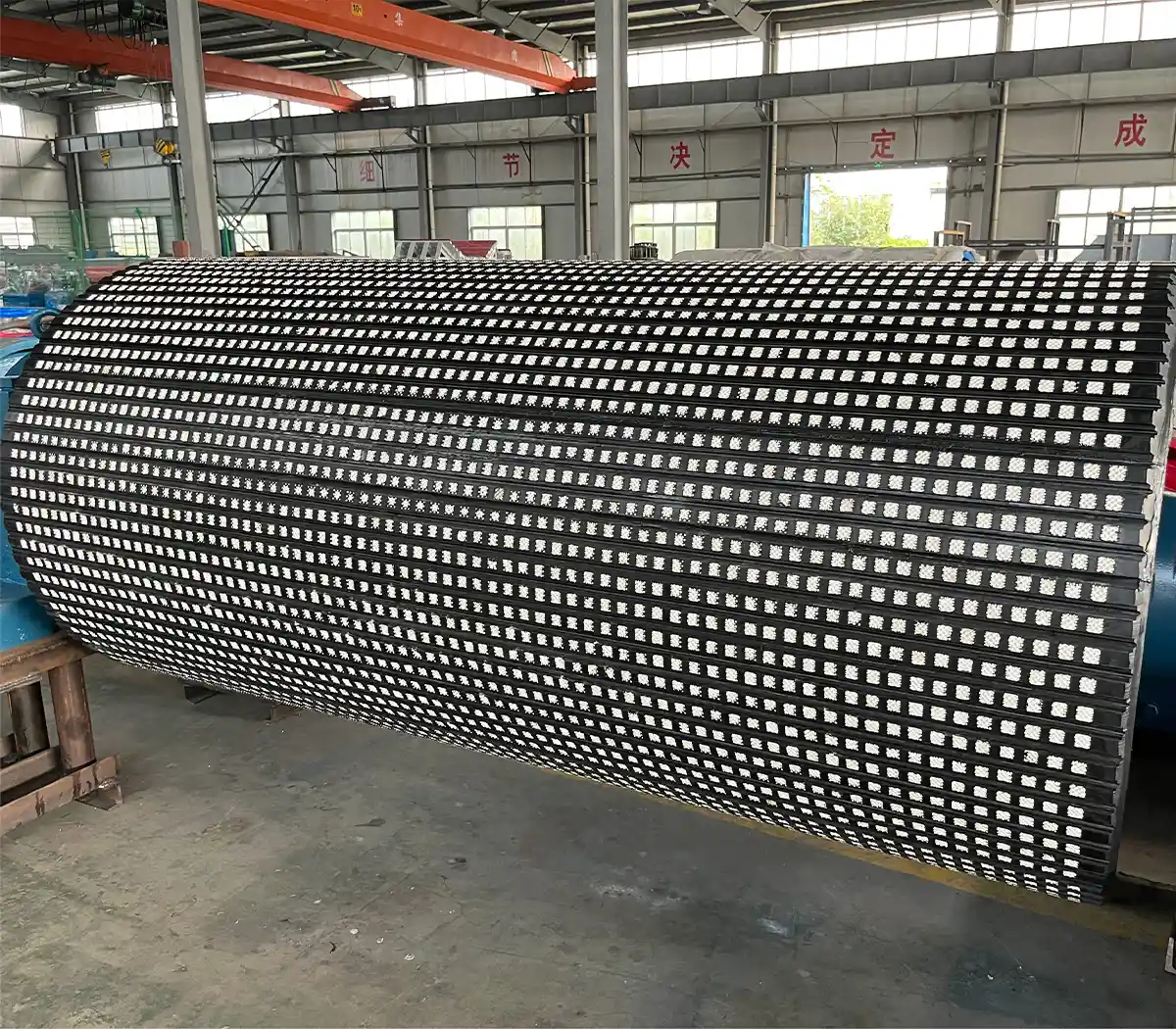

Ceramic pulley lagging is a high performance surface protection solution engineered for conveyor drive pulleys. It solves common conveyor pain points: belt slip, rapid wear, material build up, and short pulley service cycles. Our product range focuses fully on cold bond pulley lagging, designed for on site fitting without factory hot vulcanization work.

Our ceramic lagging bonds high hardness 92% alumina ceramic tiles onto tough rubber backing. This hybrid build delivers far higher friction versus bare steel or plain rubber lagging, even when working surfaces get wet, muddy or covered with slurry. It is widely adopted in mining, quarrying, aggregate processing, port terminals and heavy duty bulk material handling sites.

Cold Bond Pulley Lagging

Our cold bond pulley lagging features a proprietary CN surface layer. The standout benefit: no hot vulcanization, no pre buffing work. It brings much greener site operation with no high heat curing steps.

Pair this lagging with our QMH cold bonding glue range, you get robust, long term bonding performance with consistent field reliability. Real world site feedback proves it can extend pulley service life to over 3 times compared with non lagged pulleys.

All installation work can be completed on site. You do not need to dismantle and ship pulleys off line. It cuts your equipment downtime sharply, lowers on site labour volume, and brings straightforward, time saving fitting work.

Why Choose Cold Bond Pulley Lagging

Note: We do NOT supply hot vulcanizing pulley lagging. All our ceramic pulley lagging solutions adopt cold bond installation method for on site application.

Key Features of QMH Ceramic Lagging

• 92% alumina ceramic inserts set into rubber base effectively stop conveyor belt slipping under heavy load.
• Grooved rubber sections between ceramic blocks deliver reliable water run off and mud self cleaning performance. Slush, slurry and fine debris will not stick and pile up on pulley surface.
• Outstanding abrasion resistance for continuous heavy duty cycles; far longer working lifespan than standard rubber lagging.
• High grade rubber backing layer cushions contact, lessening friction wear between drive pulley and conveyor belt.
• Under identical loading conditions, it allows lower conveyor belt tension, which directly helps prolong your expensive conveyor belt service time.

Friction Coefficient Reference Table

Typical Application Scenarios

• Conveyor pulleys running under severe, harsh operating environments
• Bulk material transport carrying wet, muddy, slurry rich and highly abrasive ore, rock and aggregates
• Heavy load, high tension conveyor systems with high starting torque
• Drive pulleys: select our surface profiled, particle textured ceramic tiles for maximum grip
• Fit for mine sites, crushing plants, port stockyards, cement works and sand processing lines

Installation & Routine Maintenance Guide

Cold Bond Installation Key Reminders

• Thoroughly clean pulley steel shell. Remove rust, grease, old rubber residue. Even tiny dirt will weaken bonding strength.
• Work site temperature better stays between 10 35℃. Avoid heavy rain, heavy dew or highly humid open air work.
• Use matched QMH cold bonding glue strictly follow operation manual.
• Press each lagging strip fully with rubber mallet or roller tool, eliminate air bubbles underneath.
• Keep 24 hours full curing time before restarting your conveyor system. Do not load test in advance.

Simple Inspection Checklist for Daily Monthly Maintenance

• Daily quick check: Look for tile falling off, edge lifting, gap between lagging strips.
• Weekly check: Check for cracked ceramic tiles, mud jammed inside drainage grooves. Clean mud build up timely.
• Quarterly check: Measure remaining thickness of rubber backing, plan replacement before rubber wears too thin.

Common Failures & Possible Causes

Why Choose QMH Cold Bond Ceramic Pulley Lagging

Cut unplanned downtime caused by belt slip and pulley shell wear. Instead of frequent pulley overhaul or replacement, install our cold bond ceramic lagging to stabilise conveyor output. No need to ship pulleys off line for factory hot vulcanizing processing. Send over your pulley dimension, working condition and material details; our engineering team can work out a custom fit solution for your conveyor system.

FAQ

Q1: What installation option do you offer for ceramic pulley lagging?

A: We only provide cold bond pulley lagging. All fitting work can be completed on site without pulley removal. Hot vulcanizing lagging is not available from our product line. If you need to minimize production shutdown for pulley refurbishment, cold bond solution is your ideal pick.

Q2: Can ceramic pulley lagging work for non drive pulleys?

A: Our textured ceramic tiles are optimized for drive pulleys. For bend pulleys or return pulleys, standard rubber lagging often offers more cost effective performance. Reach out to our technical team for pulley by pulley recommendation.

Q3: How much service life improvement can I expect over plain rubber lagging?

A: In wet and muddy conditions, ceramic lagging shows much higher friction retention. In high abrasion sites, field cases show service life can reach 2 4 times of ordinary rubber lagging. Exact figures depend on material abrasiveness, belt speed and daily running hours.

Q4: What preparation work is needed for cold bond installation?

A: Clean pulley surface thoroughly of rust, dust and grease. Follow QMH cold glue operation instructions closely. Temperature and humidity on site will influence final bonding result. Do not carry out bonding work in heavy rain or overly damp open air locations.

Q5: Will hard ceramic tiles damage my conveyor belt cover?

A: Our ceramic tiles are embedded within flexible rubber matrix, not protruding with sharp edges. When installed correctly, it will not cause abnormal belt cover wear. Improper installation or damaged tile edges are the main risk source of belt damage.
