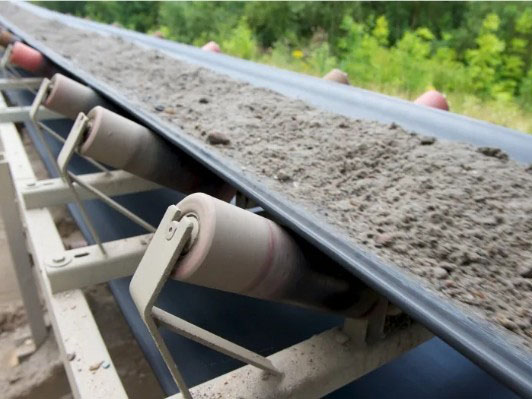

Fabric Conveyor Belt

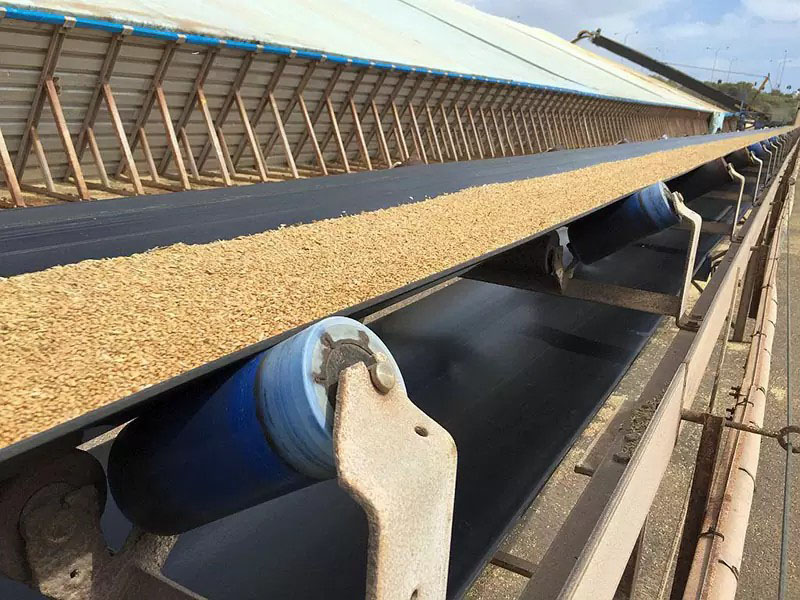

Fabric conveyor belts are the practical workhorse for bulk material handling. You will find them widely used in mining, mineral processing, quarry work, construction sites and farm based agriculture.

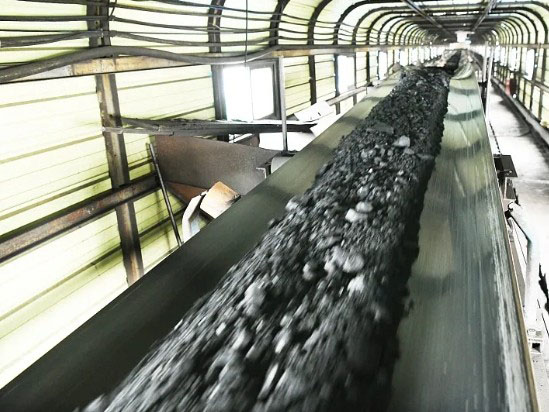

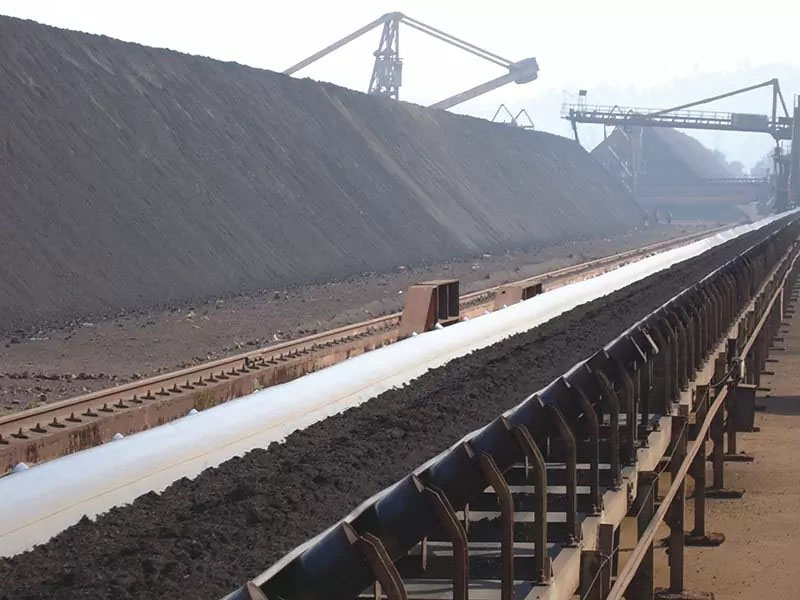

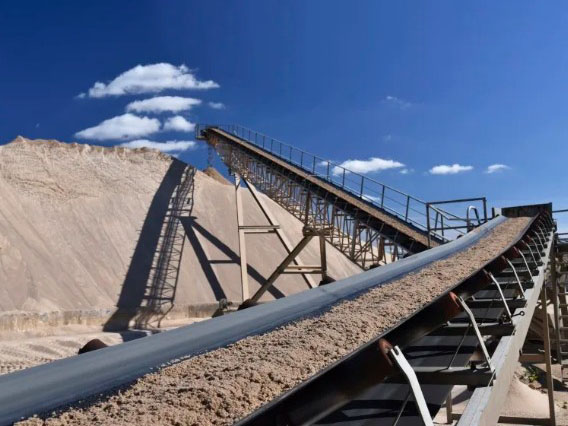

Site crews rely on these textile reinforced belts to move all sorts of bulk goods: aggregates, sand, cement clinker, mined ore, industrial chemicals, coke, grain and building materials. They handle fine powdery feeds just as well as sharp, heavy lumps. Pick the right spec, and your material transfer runs steadily through every production shift.

Our Multitrans line uses multi ply textile carcass as its core. Belt bodies consist of 2 6 fabric layers, either EP or PP grade.

• EP fabric: polyester warp threads paired with polyamide weft
• PP fabric: polyamide for both warp and weft

You get two edge options to match real world site conditions: cut edge or moulded edge.

We supply Multitrans across many standard strength grades. It delivers strong break strength in both longitudinal and transverse directions. Good cross way flexibility helps the belt sit properly on trough idlers. Solid bonding between fabric plies stops layer separation under continuous running loads.

One practical advantage with Multitrans is the flexibility in rubber cover selection. Mix and match rubber compounds to suit your actual working environment. These belts process fine dust, large sharp lumps, dry stock or sticky oily feeds. They hold up under freezing cold and high heat operating conditions.

This product line complies with most key local and international conveyor belt specifications. That makes procurement simpler for overseas project roll outs.

Key Features

• Consistent elasticity, high tensile strength and good impact resistance against falling lumpy material
• Reliable flex performance, works smoothly with standard roller trough sets
• Low operational elongation, so you spend less time adjusting take up units
• Well suited for medium long haul routes, heavy payloads and high speed operation
• Custom rubber covers deliver protection against oil, acid, alkali, abrasion, heat and flame risk

Belt Construction

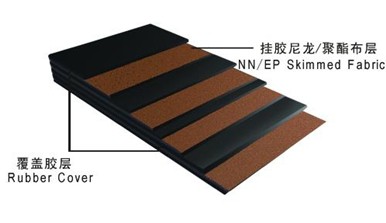

Fabric conveyor belts are built from impregnated NN / EP / EE fabric plies. Different rubber cover sheets bond onto the textile core via calendering, laminating and hot vulcanization. Fabric layers take most of the pulling tension. Rubber outer layers shield inner textiles from wear, chemical corrosion and heat damage.

EP Fabric Belts (Polyester warp / Polyamide weft)

• Minimal stretch under working tension
• Needs shorter take up travel for your conveyor frame
• Stands up to mildew, moisture and rotting even in damp work zones
• Flexible structure maintains stable trough shape

PP Fabric Belts (Polyamide warp / Polyamide weft)

• Great elasticity to soak up heavy impact force
• Perfect for sites where large chunks drop from considerable height
• Fully resistant to mildew, moisture and fabric rot
• Flexible carcass keeps steady trough performance

Rubber Cover Compounds

Select rubber grades based on your conveyed material and site environment:

• Oil resistant
• High Abrasion resistant
• Acid & Alkali resistant
• Cold resistant
• Heat resistant
• Normal Abrasion resistant
• Flame retardant

Belt Types & Practical Applications

FAQ

Q: Should I go with an EP or PP fabric conveyor belt?

A: Choose EP if you want little stretch and have limited take up space. It fits most long distance fixed conveyor lines. Pick PP when your facility regularly sees heavy impact from big falling lumps. PP absorbs shock far better for these tough scenarios.

Q: Will fabric belts hold up outdoors through wet, rainy weather?

A: Yes. Both EP and PP carcasses resist mildew, moisture and rot. That said, if you move acid, alkali or oily goods, you must pick the matching rubber cover to prevent surface damage.

Q: What does troughability mean for conveyor operation?

A: Troughability describes how well a belt curves into a trough shape when resting on idler rollers. Good troughing keeps bulk material contained on the belt. It cuts spillage and reduces material loss down the conveyor run. Multi ply textile carcasses deliver this key performance.

Q: Can Multitrans belts satisfy global industry standards?

A: Our Multitrans range meets most widely accepted national and international conveyor belt requirements. Tell us which standard your project needs, and we can provide relevant test documentation for your project review.

Why Buy Our Fabric Conveyor Belt

We build Multitrans fabric conveyor belts for real world industrial wear, not just lab test outcomes. We adjust carcass layouts, rubber cover compounds and edge finishes to fit customer requirements. These belts serve mines, quarries, grain processing facilities, chemical plants and building material factories.

We often fine tune belt specs referencing customer site photos and material feedback. Whether you need standard duty units or special purpose variants including oil proof, heat resistant or flame retardant fabric conveyor belts, we can work out suitable options for your operation.
